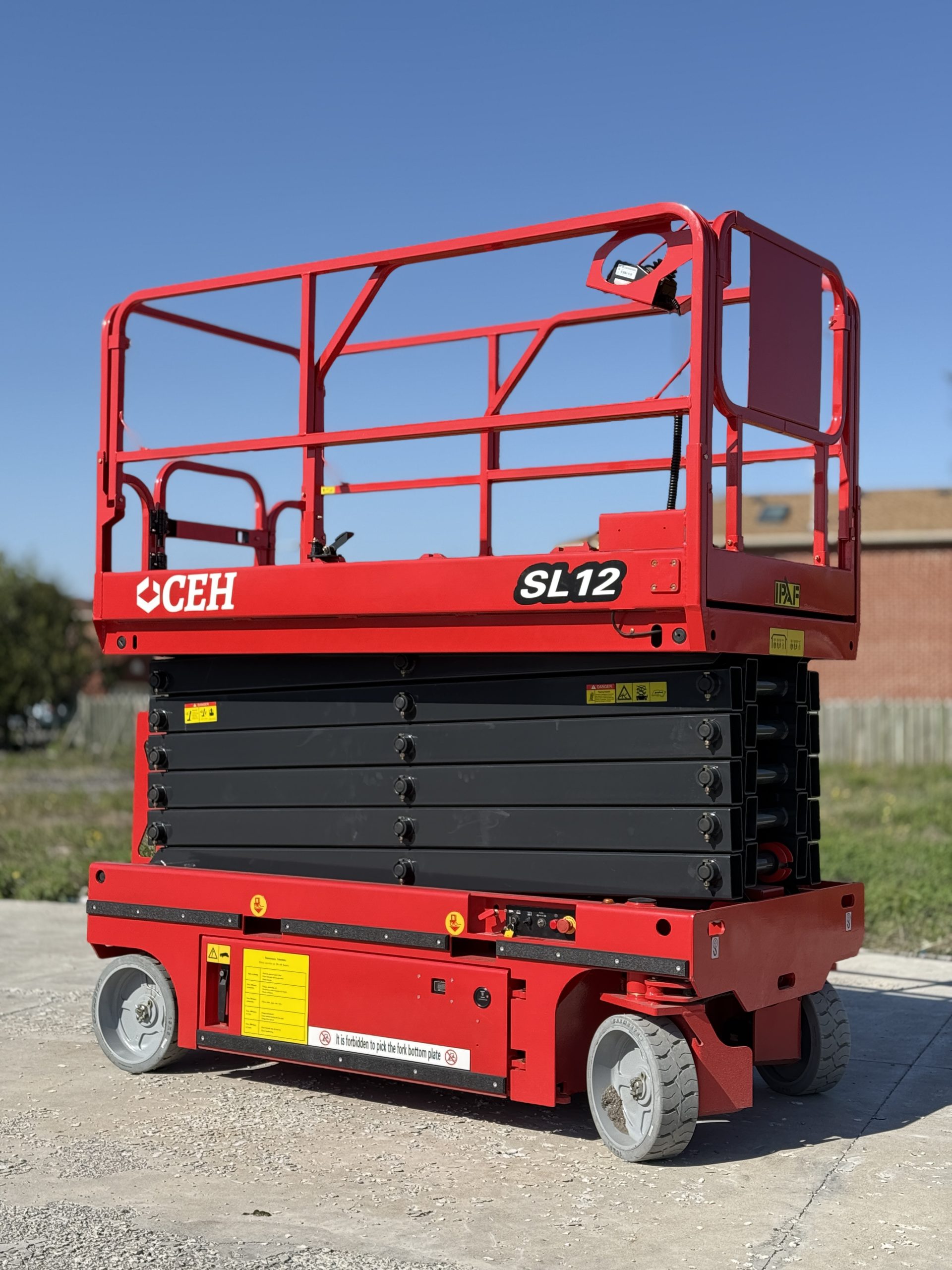

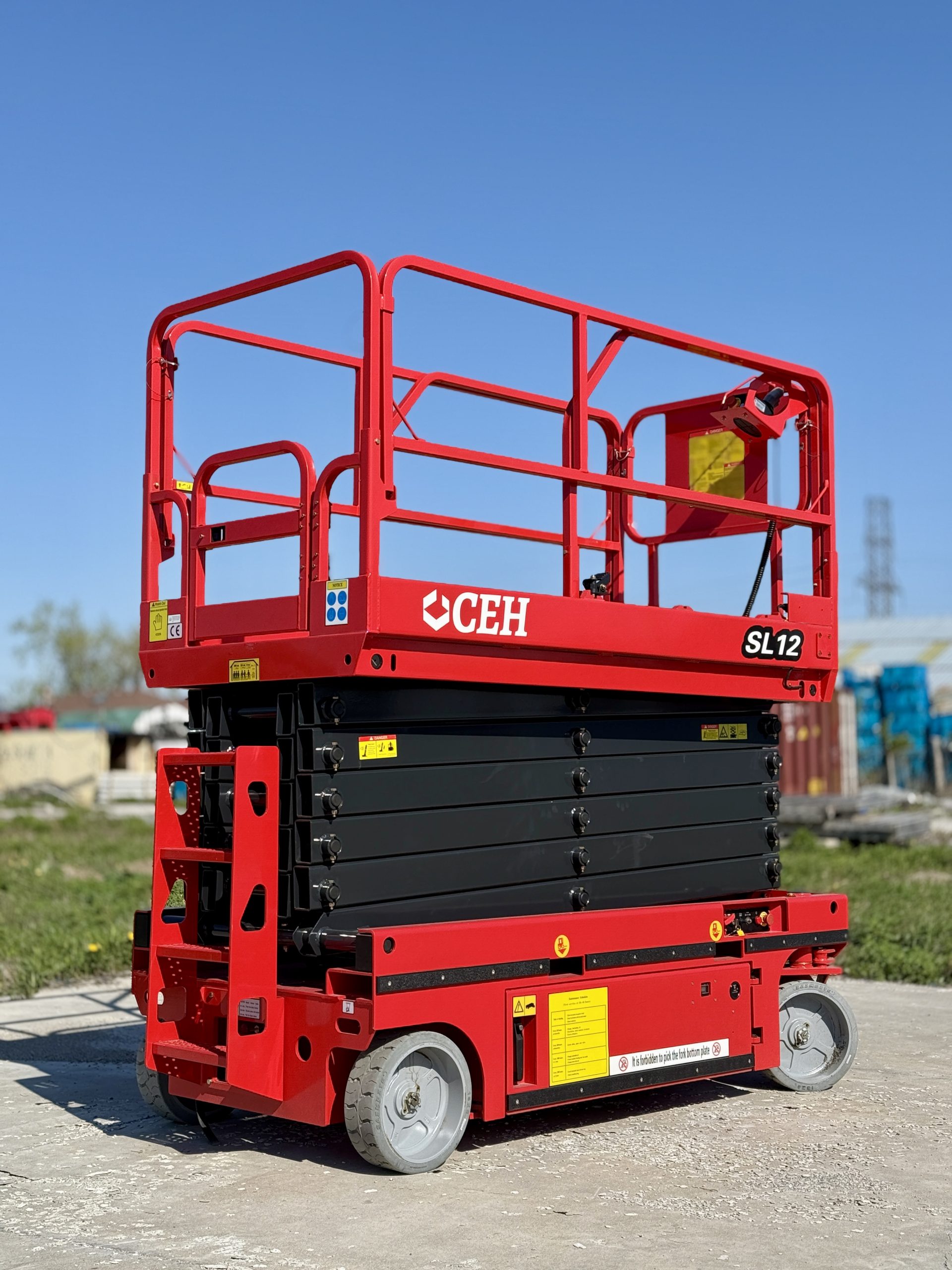

SL12 Scissor Lift

PRODUCT SPECIFICATIONS

Max. working height: 13.8 m
Max. platform height: 11.8 m
Rated load: 320 kg
Extended platform safe load: 113 kg
Platform extension: 0.9 m
Max. gradability: 25%
Machine travel speed: 3.5 km/h folded, 0.8 km/h lifted
Lifting speed: 3-5 m/min
Battery: 4 x 6V / 240 Ah
Machine weight: 2880 kg
Working platform size: 2.29 x 1.12 x 1.1m
Overall size (guardrail not folded): 2.48 x 1.19 x 2.58 m
Overall size (guardrail folded): 2.47 x 1.19 x 2.07 m
Wheelbase: 1.89 m
Ground clearance: 0.1 / 0.02 m
Turning radius: 0 / 2.2 m
Max. allowable angle: 1.5° / 3°
